Slider Bed Conveyors

A rubber or PVC belt slides on steel slats, not on idler rollers. Using slats instead of idler rollers gives fewer moving parts to wear out. The simple design can often replace a more complex and more expensive conveyor.

Slider bed conveyors use a rubber or PVC belt. Friction between the belt and the drive pulley moves the belt around the conveyor. The belt slides on steel slats, not on idler rollers, so fewer moving parts wear out and need replacement. Remcon's slider bed design is simple, so it can often replace a more complex or more expensive type of conveyor.

What Is a Slider Bed Conveyor?

A slider bed conveyor is a belt conveyor. The belt slides over a solid steel bed instead of riding on idler rollers. We build this style of slider bed belt conveyor with a replaceable 3/8" flat-bar slat bed and a formed 3/16" plate steel frame. Belt widths range from 12" to 72". We build them for recycling materials recovery facilities (MRFs), solid waste plants, and original equipment manufacturer (OEM) production lines. With no idler rollers to fail, there are fewer moving parts to wear out, inspect, or replace.

Advantages of Remcon Slider Bed Conveyors

  • An affordable conveyor for light to medium loads
  • Low-profile loading section works well for above-ground installations
  • Available in belt widths from 12" to 72" (six feet)
  • Simple design is easy and inexpensive to maintain
  • Underside of conveyor is enclosed and self-cleaning for safety and cleanliness

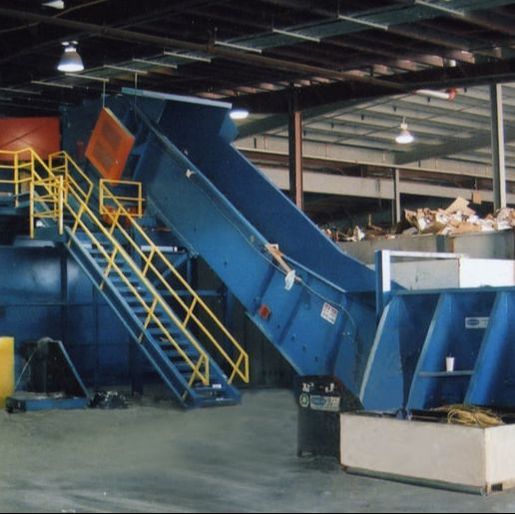

Low-profile above-ground loading section on a Remcon slider bed conveyor
FIG. 01 Low-profile above-ground loading section on a slider bed conveyor

Custom Slider Bed Conveyor Manufacturer

Remcon is a custom slider bed conveyor manufacturer. We design, weld, and assemble every conveyor at our Airway Heights (Spokane), Washington shop, then ship and install it nationwide. We have built recycling equipment since 1977. Roughly 95% of our production is slider bed, drag chain belt, and roller chain belt conveyors. We build each conveyor to order. So we match widths, lengths, orientations, hoppers, and hoods to your building and your material stream, not to a catalog page.

Common Slider Bed Conveyor Uses

The slider bed is the base design behind many of the conveyors we build. Each use has its own entry:

Baler Feed Conveyors →

Infeed Conveyors →

Sort Line Feed Conveyors →

Sorting Conveyors →

Transfer Conveyors →

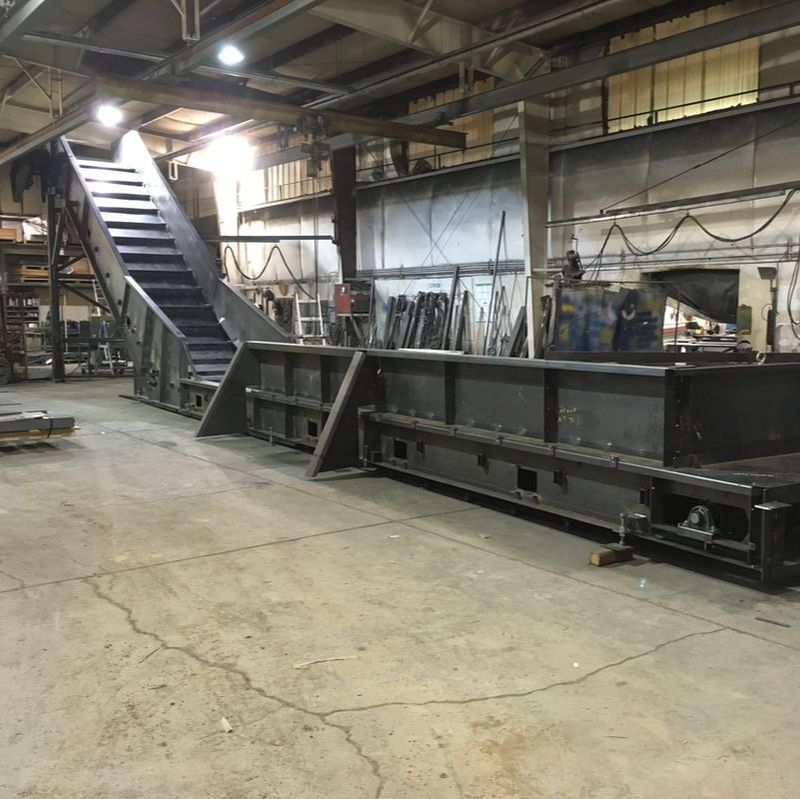

Slider bed conveyor built as a baler feed conveyor
FIG. 02 Slider bed built for baler feeding

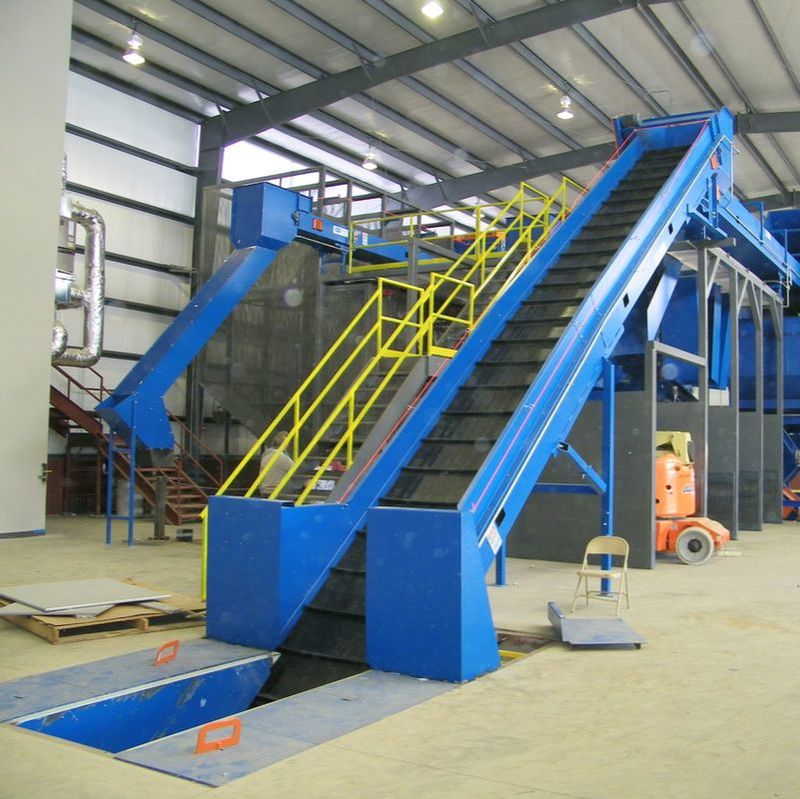

Slider bed infeed conveyor
FIG. 03 Slider bed infeed conveyor

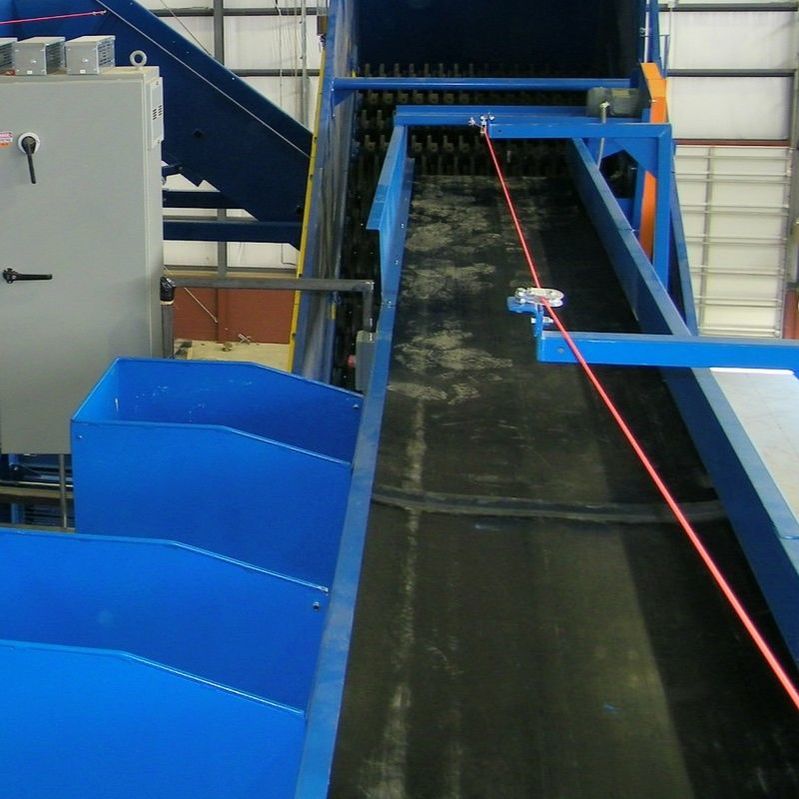

Slider bed sorting conveyor
FIG. 04 Slider bed sorting conveyor
Slider bed transfer conveyor
FIG. 05 Slider bed transfer conveyor

Conveyor Orientation Options

Remcon can build slider bed conveyors in many orientations. The orientation depends on the layout requirements. We can also build two separate conveyors that run in series. This arrangement can make installation simpler or separate clumps better. It can also let you use two different types of conveyors (for example, a roller chain feeding a slider bed). Other options may also be available, depending on the application.

All of these orientation options can be installed in the ground (in a pit) or above ground. The horizontal elbow-up incline orientation is common in recycling plants, so it has its own entry. See our elbow-up slider bed conveyors.

Contact us about layout options for your site →

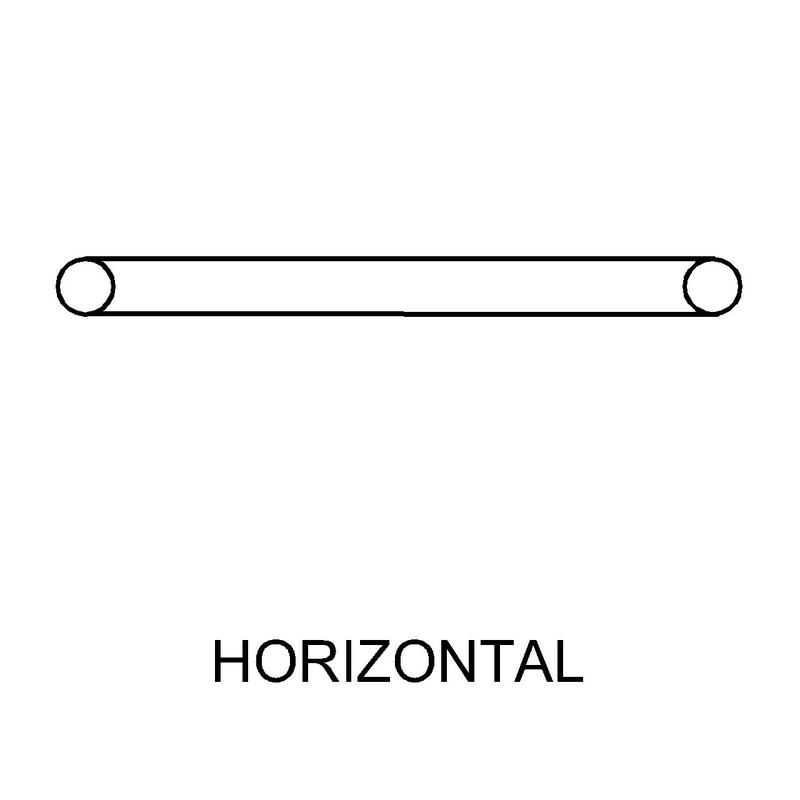

Drawing of a horizontal slider bed conveyor orientation
DWG. 01 Horizontal

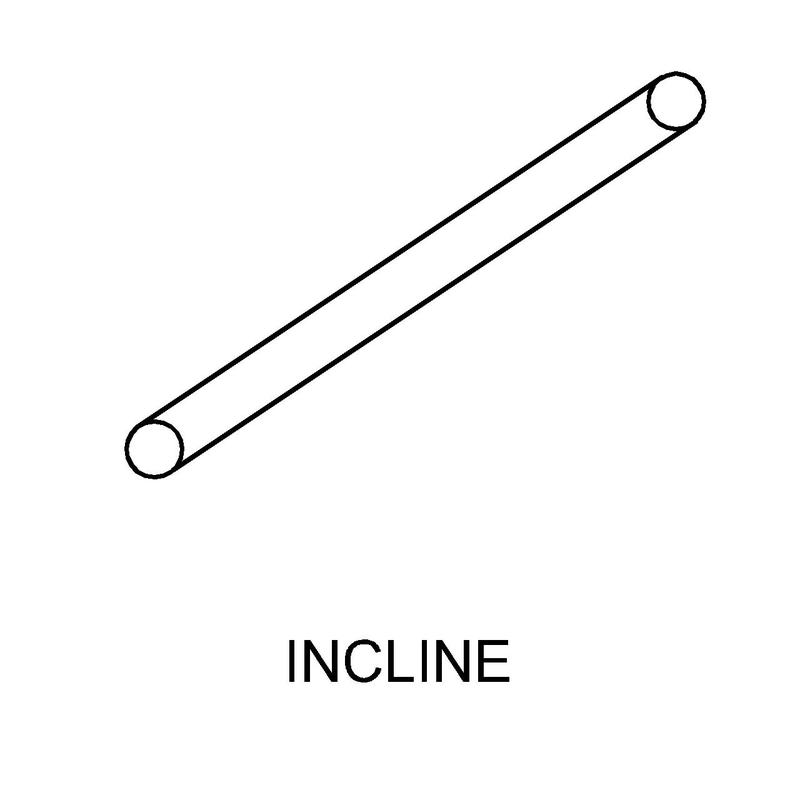

Drawing of an incline slider bed conveyor orientation
DWG. 02 Incline

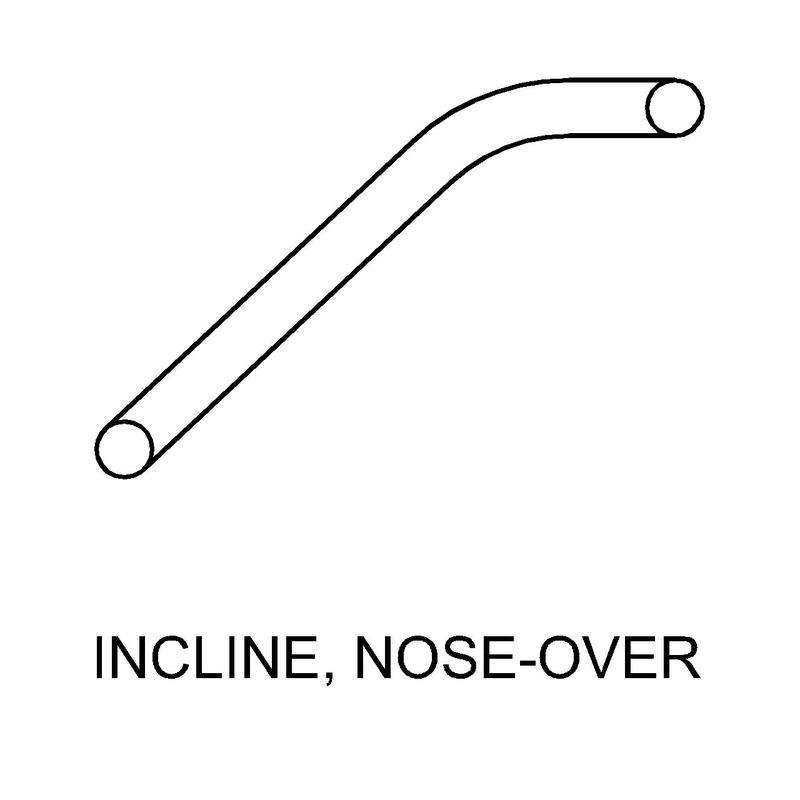

Drawing of an incline slider bed conveyor with nose-over
DWG. 03 Incline with nose-over

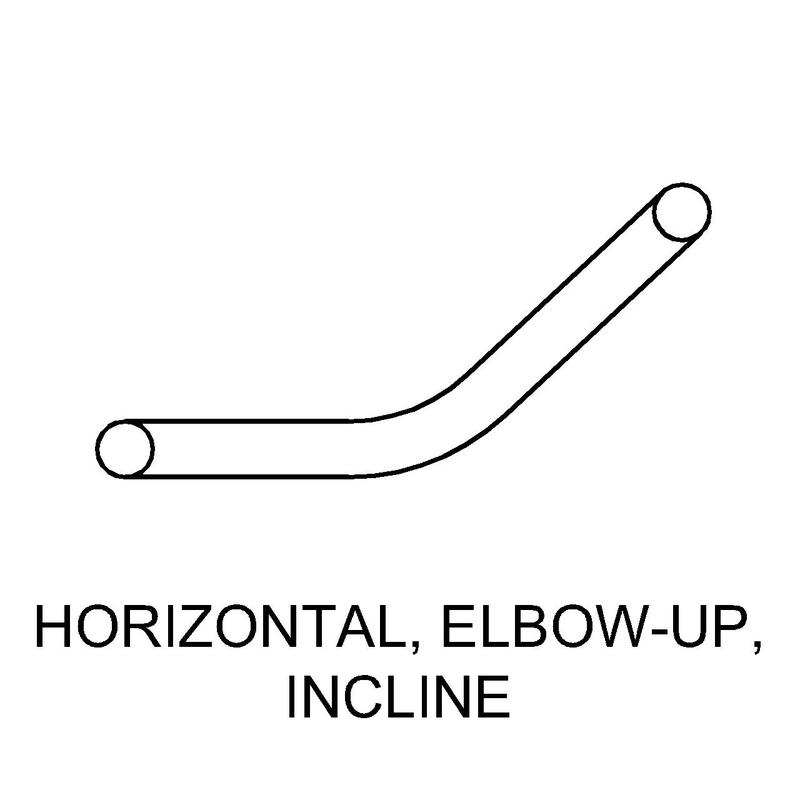

Drawing of a horizontal elbow-up incline slider bed conveyor
DWG. 04 Horizontal elbow-up incline

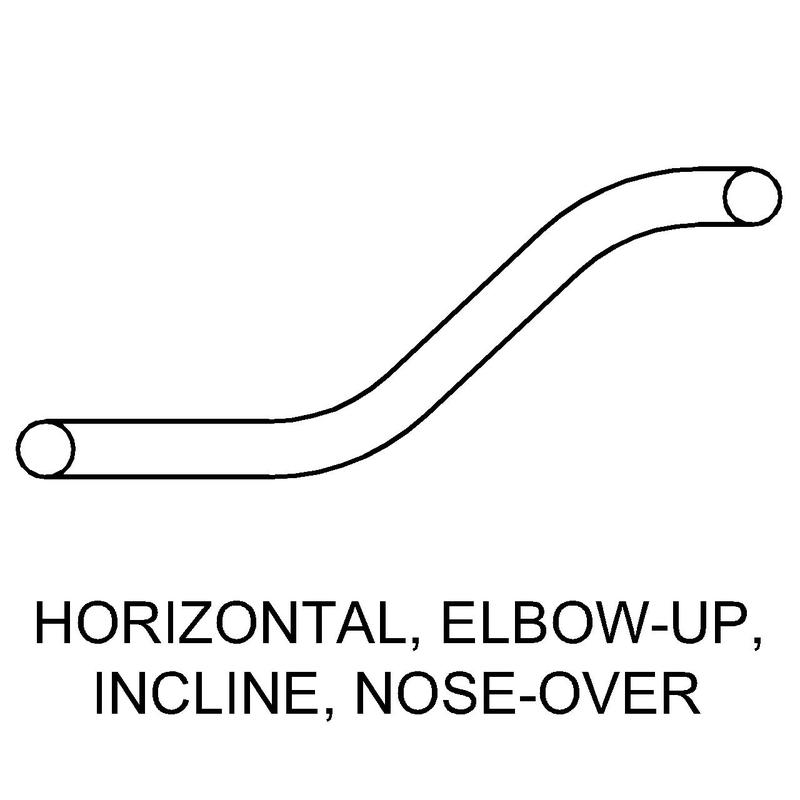

Drawing of a horizontal elbow-up incline slider bed conveyor with nose-over
DWG. 05 Horizontal elbow-up incline with nose-over

Specialty Orientation Options

Remcon can also build conveyors in these configurations, if needed, based on site layout and material feeding requirements:

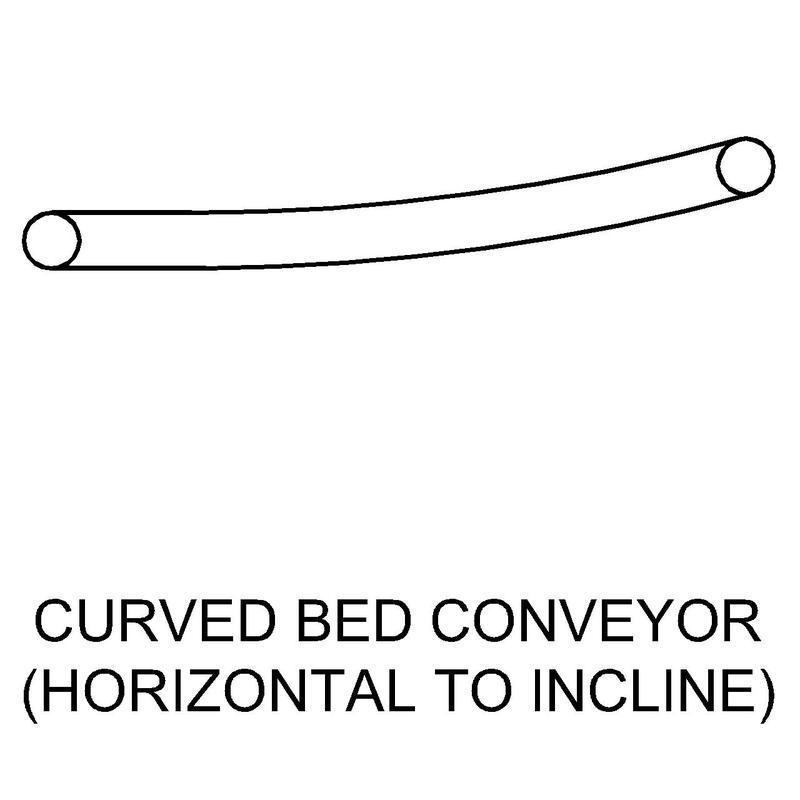

Drawing of a curve-up slider bed conveyor
DWG. 06 Curve-up conveyor

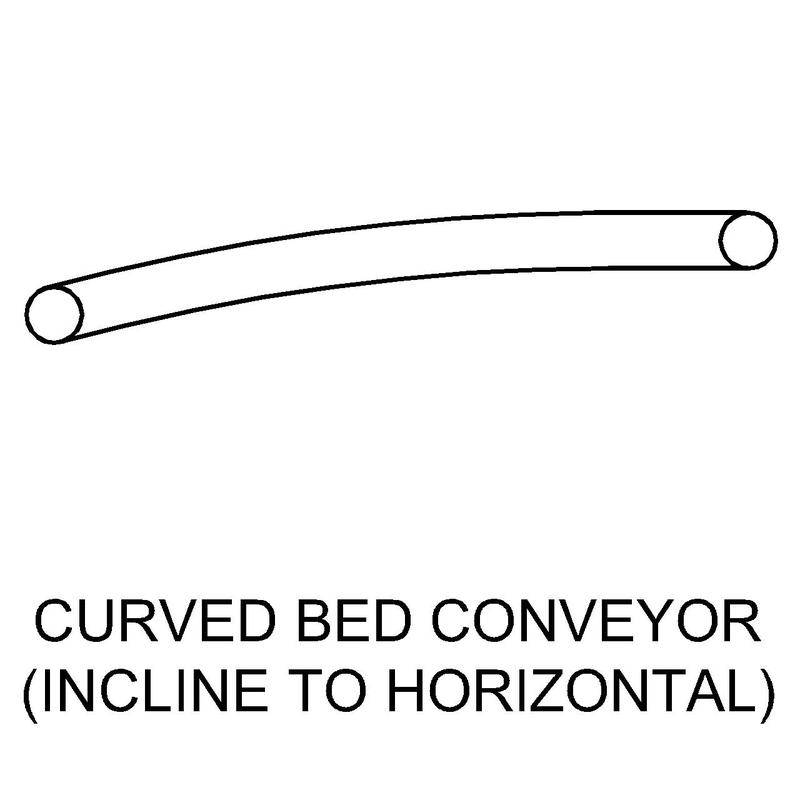

Drawing of a curve-flat slider bed conveyor
DWG. 07 Curve-flat conveyor

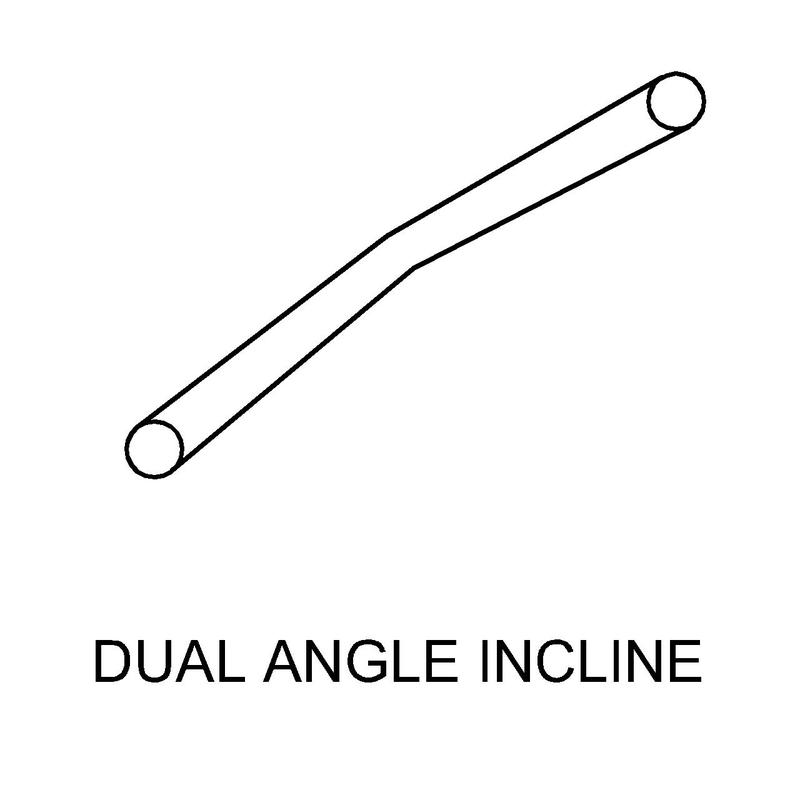

Drawing of a dual-angle incline slider bed conveyor
DWG. 08 Dual-angle incline: the angle changes from steep (to help with metering) to shallower (to prevent rollback)

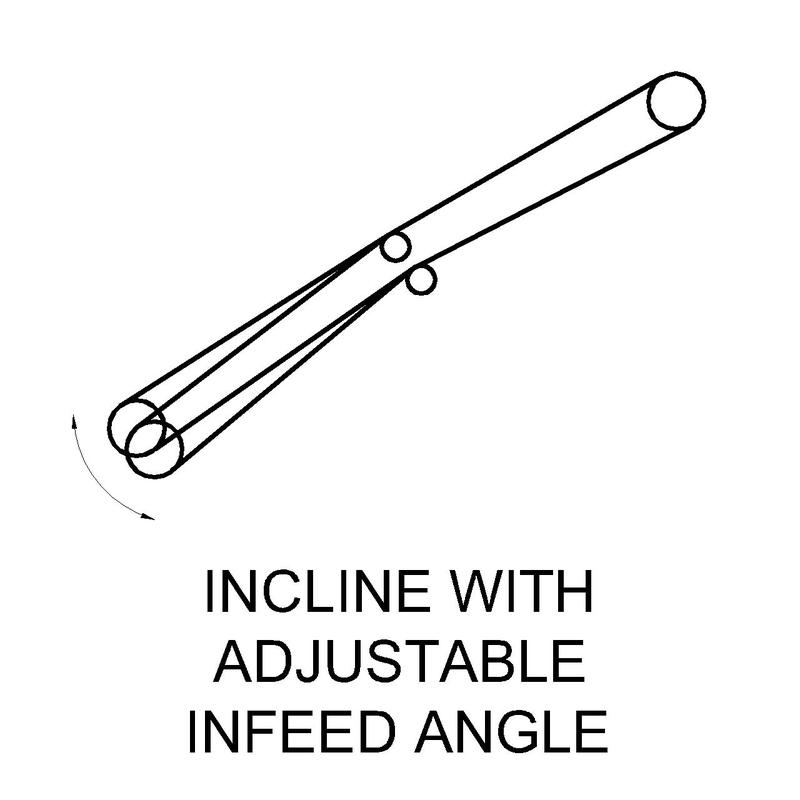

Drawing of an incline slider bed conveyor with adjustable infeed angle
DWG. 09 Incline with adjustable infeed angle

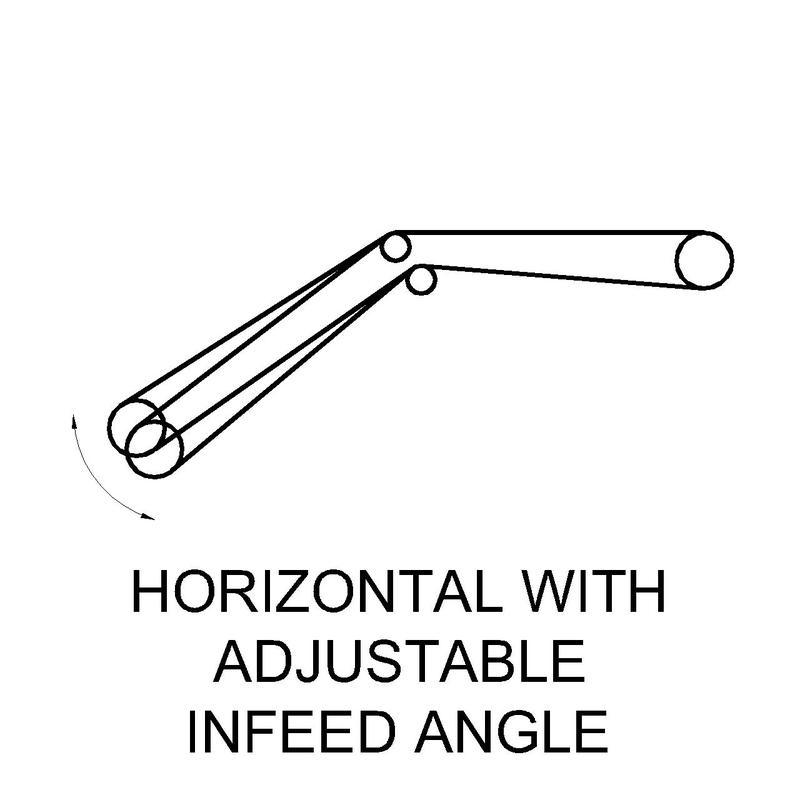

Drawing of a horizontal slider bed conveyor with adjustable infeed angle
DWG. 10 Horizontal with adjustable infeed angle

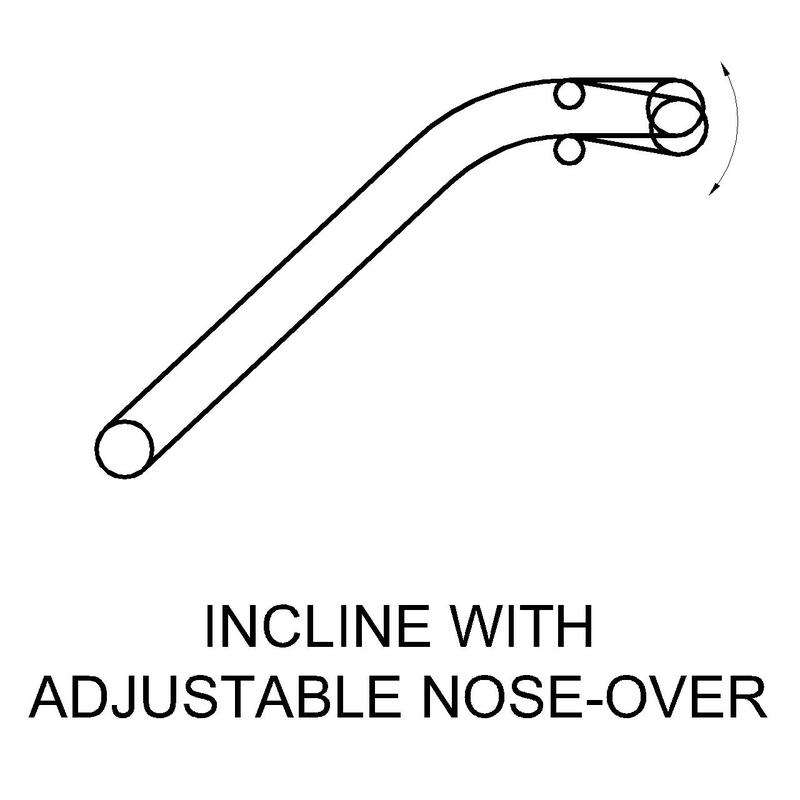

Drawing of an incline slider bed conveyor with adjustable nose-over
DWG. 11 Incline with adjustable nose-over

Slider Bed vs. Roller Bed Conveyors

The choice between a slider bed and a roller bed conveyor depends on the material, the layout, and the maintenance you are willing to accept. A roller bed (idler) conveyor carries the belt on rotating rollers, so it has less friction over long runs. See our troughing idler conveyors. A slider bed carries the belt on a solid slat bed, so the load stays stable. Small and irregular material does not bounce. There are no idler rollers to seize or replace.

FactorSlider bedRoller bed (idler)
Belt supportSolid steel slat bed: stable, quiet rideRotating idler rollers
Moving partsFewer: no idlers to seize, inspect, or replaceAn idler set every few feet
Friction & drive loadHigher belt friction; suited to light and medium loadsLower friction; suited to long runs and heavy bulk loads
Small or irregular materialExcellent: glass, cans, film, and fines ride without bouncingMaterial can bounce between idler sets
MaintenanceSimple: replaceable bed slats, pillow block bearingsIdler bearings are a recurring wear item
Typical Remcon useMRF sort lines, baler feed, infeed, transferMining, aggregate, long-distance bulk

The guide explains the full comparison, including the friction, maintenance, and cost trade-offs: Slider bed vs roller bed conveyor: how to choose.

Many systems use both types. A roller conveyor or troughing idler section carries the material over long distances and feeds a slider bed for metering, sorting, or baler feeding.

Heavy-Duty Slider Bed Conveyor Construction

Most catalog conveyors sold as a "heavy duty slider bed conveyor" are formed from 12-gauge sheet steel and have a fractional-horsepower drive. These catalog conveyors are suitable for parcels, but they are short-lived in a recycling plant. A heavy-duty slider bed conveyor from Remcon is a different weight class. The frame is formed from 3/16" plate steel. The bed is made of replaceable flat-bar slats that are 3/8" thick. The drive is a shaft-mounted Dodge Torque Arm II reducer sized for the load. That construction is why our conveyors survive whole and broken glass, tin and aluminum cans, and the daily abuse of MRF and solid waste service.

Special Features

Slat Bed Design

The belt slides on the conveyor bed. The bed is made of slats, not solid steel. A solid bed traps both small debris and moisture underneath the belt. The debris causes increased friction and wear on both the belt and the bed. The moisture, which can include sticky liquid from containers, causes suction and drag on the belt. The slat design lets this debris and moisture escape from between the belt and the bed. The debris and moisture fall between the top and return belts, off the edges of the return belt, and into the return pan. The slat design prevents these problems.

Replaceable Bed Slats

The bed slats on Remcon conveyors are designed to be easily replaceable if they do eventually wear out or get damaged.

Belt Edge Seal

Raised (troughed) side bed slats seal the edges of the belt. Their purpose is to prevent glass and metal debris from getting under the belt edge and causing premature belt wear.

Self-Cleaning Return Pans

Remcon conveyors are designed with a pan that fully encloses the return belt for safety and to collect debris that clings to the belt. The debris is pulled to clean-out openings along the length of the conveyor or to a collection area at the infeed end of the conveyor. Collecting the debris this way gives a clean, safe floor area under the conveyor.

Clean-Out Areas

Return pans contain the debris that falls off the return side of the belt, to prevent material spillage. The conveyor "self cleans" the debris to different clean-out locations. The location depends on where on the conveyor the debris falls off and what type of conveyor it is:

  • For inclined conveyors. Debris that falls off the return belt slides down the enclosed return pan (or is dragged down by cleats) to the bottom of the incline. The debris goes to a guarded clean-out area. Removing the debris this way prevents the unsafe buildup of material underneath the inclined portion of the conveyor.
  • For horizontal conveyors. Cleats drag the debris that falls off the return belt in the horizontal section toward the tail end of the conveyor. If there are no other cleats, a wiper cleat drags the debris. The debris goes to a clean-out area at the tail end of the conveyor. Removing the debris this way prevents the unsafe buildup of material underneath the horizontal portion of the conveyor (or in a pit or similar area).
  • For longer horizontal conveyors. Wiper cleats drag the debris that falls off the return belt toward the tail of the conveyor. Openings in the pan bottom are spaced along the length of the conveyor. The openings let this debris fall out of the return pan into a removable clean-out tray. Removing the debris this way prevents the material from dragging through the entire length of the return pan and causing wear or excessive buildup.

Remcon Belt Take-Ups

Remcon's cantilevered, telescoping tube style take-ups with manual screw adjustment offer the following advantages:

  • Cleaning access. The take-up frame is positioned to provide access to the area between the upper and lower belts. The access makes it easier to clean and inspect the tail pulley.
  • Replaceable parts. Remcon take-ups consist of separate, individual components that can be easily replaced as they wear out. The bearings bolt on separately and are the commonly available pillow block style. The threaded working parts of the take-up are separate and easily removed, and are commonly available from local fastener or hardware stores.
  • Take-up travel: The take-up travel is 10" on the shorter conveyors and up to 18" on the longest conveyors. On slider bed style conveyors, the belt is cut so that most of the take-up travel is used to make the belt looser. A looser belt is easier to install, repair, and replace. Good-quality belts with polyester carcasses have almost no stretch after initial tensioning. In some cases they shrink slightly. So not much take-up travel is needed to make the belt tighter as the belt is used.
  • Ease of adjustment. Belt tracking and tension adjustments are made with one wrench, with no need to loosen and re-tighten the bearing attachment bolts. The moving parts of the take-up have generous clearance. This clearance is there to prevent binding in the frame or against the bearings (side load) as the take-up moves through its full range.
  • Bearing brands. Remcon take-ups accept almost any brand of pillow block bearing (the most common style of bearing).

Belt Tracking

Adjustment for centering the conveyor belt is provided on both ends of the conveyor.

Drive Method: Shaft-Mounted, Parallel Gear, Torque Arm Reducers (Dodge Torque Arm II)

These reducers have been used almost exclusively in sand, rock, gravel, mining, and similar industries for many years. The reducers are well proven. We have used them since 1990, with good success. The new generation has been re-engineered throughout with features designed to improve performance, extend service life, and reduce maintenance. We normally configure these reducers to be driven by a separate motor through v-belts. We use different combinations of sheaves for additional speed reduction.

The advantages of using the Dodge Torque Arm II shaft mount reducer with v-belt drive are as follows:

  • Low maintenance. There are no drive chains to oil, tension, or shorten and reconnect.
  • Ease of adjustment. With the Dodge Torque Arm II reducer, you do not need to move the entire gearbox and motor to adjust the chain tension. To adjust the reducer, you only open the hinged door on the belt guard, loosen the two lock nuts, and turn the turnbuckle by hand.
  • Fewer wear parts. There are no sprockets or chain to wear out. V-belts do wear out. However, they commonly do not wear out until they are protecting the conveyor from jamming, if it jams (see the next item). V-belts are inexpensive and easy to replace. V-belt sheaves last much longer than drive chain sprockets and drive chain.
  • Jamming protection. The need for mechanical shear pins is eliminated. The motor drives the reducer by v-belt(s). If the conveyor jams, the v-belt slips. The slipping v-belt prevents the jam from causing damage to the conveyor. As the v-belt is slipping, it typically makes a loud squealing noise that draws attention to the problem. If the conveyor is not turned off, the v-belt is eventually ruined. Then nothing drives the jammed conveyor. The v-belt is the cheapest part in the drive to replace. Replacing the v-belt involves opening the hinged belt guard door, loosening the turnbuckle and slipping the new v-belt on. If the conveyor is prone to jamming (for example wrong product, or too much product), the v-belt can be kept looser than normal. The purpose is to minimize the potential for damage. We are unaware of any Remcon conveyor equipped with these reducers that suffered damage resulting from jamming. An electronic shear pin may be added to the electrical system for additional jamming protection.
  • Parallel gears. The gears are parallel, rather than right angle. Parallel gears are more efficient and produce less friction.
  • Operating and maintenance convenience. When you work on a conveyor, you often need to move the belt a short distance forward or backward. Examples of this work are maintenance, clearing jammed product, and diagnosing problems. You cannot move the belt electrically, because the power should be locked out during this work. With a shaft-mounted reducer, you can move the belt easily and safely without power, by turning the spokes on the input sheave by hand.
  • Availability. Unlike other reducers, Dodge Torque Arm II reducers are so commonly used in other industries that they are often in stock at many local dealers. Dodge Torque Arm II reducers are almost always available somewhere in the country. Other brands (for example Link and Browning) may also be substituted without modification.
  • Separate motor. The motor is mounted separately from the reducer. Only v-belts connect them. So any brand of motor can be used. A motor breakdown does not affect the reducer, and a reducer breakdown does not affect the motor.
  • Ease of changing reduction ratios. The motor-to-reducer v-belts and sheaves easily give reduction ratios of up to 5 to 1. These ratios are easily changed by swapping out sheaves. Changing the ratios is more difficult and more expensive with a drive chain and sprockets.

Standard Specifications

The following specifications are standard on nearly all Remcon slider bed conveyors, unless a different specification is requested or the special application requires it:

SpecificationRemcon standard
BeltRubber or PVC, widths from 12" to 72" (six feet)
Bed3/8" thick replaceable flat-bar slats, which decrease friction and drag from moisture and prevent abrasive dust from accumulating
FrameFormed 3/16" plate steel with guarded access holes
BearingsDodge SXR pillow block bearing with eccentric locking collar for better grip on shaft
DriveShaft-mounted Dodge Torque Arm II reducer, v-belt driven; variable frequency drive (VFD) optional
Belt take-upCantilevered telescoping tube style, 10" travel on shorter conveyors up to 18" on the longest
Disconnect switchLockable disconnect switch included for conveyor maintenance
Emergency stopCable-pull switch with cable and rigging as required by OSHA
GuardsAll drive components are guarded with hinged covers. Guards in the sorting area are flat and smooth for sorters to lean against.
LegsAdjustable steel tube construction for accurate leveling
InstallationIn-ground (pit) or above ground; shipped and installed nationwide from Airway Heights, WA

Options

  • Belt lacing: Multiple options are available if the customer already has a preference. The options depend on belt width, type, and thickness. Common types used are Flexco Alligator® Staple Hinge lacing for thinner belts, or Flexco® R2 Rivet Hinge lacing for thicker belts. Most fastener types are available in galvanized steel, stainless steel, or MegAlloy®.
  • Belt sidewalls and/or conveyor lane dividers. Sidewalls and dividers can be added to help contain material on the belt. They can also be added to divide the belt into different "lanes" for carrying different types of material separately at the same time. Belt sidewalls come in many styles and height options. Conveyor dividers can be used instead of belt sidewalls, or together with them. The aim is to keep material separated on the belt, with little or no cross-contamination from infeed to discharge.
  • Bolt joints: Bolt joints are included at the approximate midpoint of the conveyor length. They allow the conveyor to be separated into two pieces for shipping, installation, or both.
  • Drive styles. Options include v-belt driven, shaft-mounted gear reducer, shaft-mounted gearmotor, or direct drive by motor and v-belt (sheave reduction only as needed).
  • Hood. Custom built to feed machinery or containers that come next, as needed. Splitters, redirection chutes, and other parts are also available as needed.
  • Infeed hopper. Custom built to receive material from the previous conveyor or other feed method.
  • Self-cleaning tail pulley. On conveyors that handle glass or other materials that cause excessive wear or buildup, a self-cleaning tail pulley can be used. The self-cleaning pulley can help to eject material that gets between the belt and the tail pulley.
  • Skirting. Several styles are available, depending on the application (brush strip style, rubber belt style, steel only, skirtboard, and other styles).
  • VFD (variable frequency drive). Commonly available drives, by U.S. manufacturer, with easy-to-use controls, rugged enclosures, and options for locating various controls inside or outside of control panels.

Slider Bed Conveyor FAQ

What is a slider bed conveyor?

A slider bed conveyor is a belt conveyor whose belt slides over a solid steel bed instead of riding on idler rollers. We build the bed from replaceable 3/8" flat-bar slats inside a formed 3/16" plate steel frame. This construction gives a stable ride for glass, cans, paper, and other recyclables. The conveyor also has fewer moving parts to maintain.

How does a slider bed conveyor work?

Friction between the belt and the drive pulley moves the belt. As the drive pulley turns, it pulls the rubber or PVC belt across the steel slat bed. The belt carries material from the infeed hopper to the discharge. Belt tension and tracking are set at the take-ups on either end. A shaft-mounted reducer with v-belt drive turns the drive pulley.

Slider bed or roller bed: which do I need?

Choose a slider bed conveyor for light to medium loads and for small or irregular material. Also choose it for sorting and metering duty and for low-maintenance service. Choose a roller bed (troughing idler) conveyor for long runs and heavy bulk material such as ore or aggregate. Lower belt friction matters more in these cases. Many Remcon systems combine both types in series.

What belt widths and lengths does Remcon build?

Remcon builds slider bed conveyors with belt widths from 12" to 72" (six feet). The layout sets the length. Conveyors ship in bolted sections, so long runs are split at the approximate midpoint for shipping and installation. We build every conveyor to order for the site.

Can a slider bed conveyor incline?

Yes. Standard orientations include horizontal, incline, incline with nose-over, and horizontal elbow-up incline. Specialty orientations include curve-up, dual-angle incline, and adjustable infeed angles. Cleated belts and belt sidewalls help carry material up steeper inclines without rollback.

How much does a custom slider bed conveyor cost?

Price depends on belt width, length, orientation, hoppers, hoods, and drive options, so Remcon quotes each conveyor individually. Tell us the material, the load, and the layout. We will quote the conveyor. If a simpler, less expensive conveyor can do the job, we will also tell you that. Call (509) 244-9439 for a quote.

Does Remcon install slider bed conveyors nationwide?

Yes. We design and fabricate every conveyor at our shop in Airway Heights, Washington (Spokane area). We then ship and install each conveyor nationwide with our own installation crews. We also repair, rebuild, and supply replacement belts and parts for the life of the conveyor.

We specialize in custom designed and fabricated equipment. We can work with you to design equipment that will work well for your needs. Contact us to discuss options or to get a quote.

Get a quote for a slider bed conveyor →
